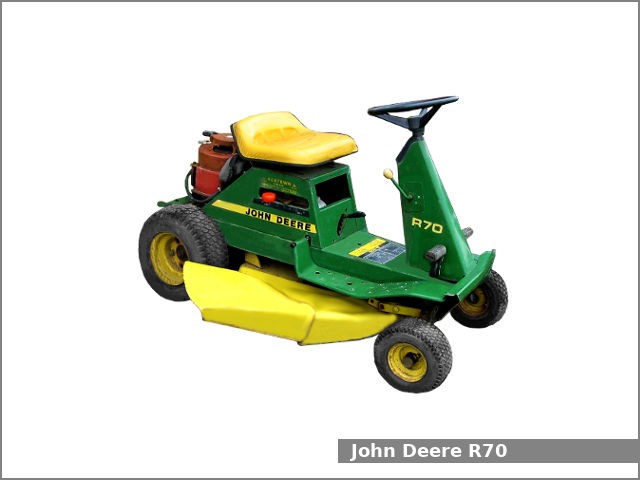

The John Deere R70 is a 2WD riding lawn mower from the R series. This tractor was manufactured by John Deere from 1984 to 1986. The JD R70 is equipped with a single-cylinder gasoline engine and a belt-driven gear transmission with 5 forward and 1 reverse gear.
The John Deere R70 riding mower used the Briggs & Stratton engine. It is a single-cylinder natural aspirated gasoline engine with a recoil starter. This engine produced 8.2 PS (6.0 kW; 8.0 HP) of output power.
The John Deere R70 is equipped with manual steering, mechanical band brakes, open operator station, 4.7 liters (1.2 US gal.; 1 Imp. gal) fuel tank, and 30 inches (760 mm) mower deck with a single blade.
John Deere R70 Specifications
General Specifications | |
Model | John Deere R70 |
Length | 1,440 mm (56.7 in) |
Width | – |
Height | 960 mm (37.8 in) |
Wheel base | 1,060 mm (41.7 in) |
Weight | 124 kg (273 lbs) |
Fuel tank capacity | 4.7 liters (1.2 US gal.; 1 Imp. gal) |
Battery | – |
Cabin type | Open operator station |
Engine | |
Engine model | Briggs & Stratton |
Engine type | Four-stroke, air-cooled |
Cylinders | 1 |
Fuel type | Gasoline |
Displacement | – |
Bore and stroke | – |
Horsepower | 8.2 PS (6.0 kW; 8 HP) at rpm |
Starter | Manual |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Manual |
Brakes | Mechanical band |
Transmission model | – |
Transmission type | Belt-driven gear |
Gears | 5 forward and 1 reverse |
Speed | Forward: 7.9 kmh (4.9 mph) Reverse: 2.6 (1.6 mph) |
Tires | |
Front tires | Lawn/turf: 11×4.00-5 |
Rear tires | Lawn/turf: 16×6.50-8 |
PTO (Power take-off shaft) | |
Middle PTO type | Independent with mechanical clutch |
Middle PTO speed | – |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
