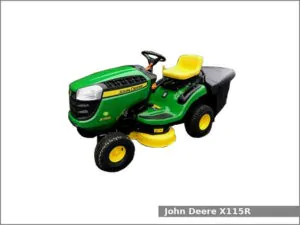

John Deere X115R

John Deere X115RThe John Deere X115R is a 2WD rear-discharge mower from the X100 series. This tractor has been manufactured by John Deere in Greeneville, Tennessee, USA since 2015. The John Deere X115R is equipped with a 0.3 L (20.7 cu·in) single-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The John Deere X115R rear-discharge mower used the Briggs & Stratton Model 21 engine. It is a 0.3 L, 339 cm2, (20.7 cu·in) single-cylinder natural aspirated gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 57.0 mm (2.24 in) of the piston stroke. This engine produced 9.4 PS (6.9 kW; 9.3 HP) at 3,350 rpm of output power.

The John Deere X115R is equipped with manual steering, open operator station, 7.6 liters (2 US gal.; 1.7 Imp. gal) fuel tank, and mid-mount the John Deere 36 in (910 mm) mower deck with a manual lift.

John Deere X115R Specifications

General Specifications
ModelJohn Deere X115R
Length2,527 mm (99.5 in)
Width960 mm (37.8 in)
Height1,140 mm (44.9 in)
Wheel base
Weight230 kg (507 lbs)
Fuel tank capacity7.6 liters (2 US gal.; 1.7 Imp. gal)
Battery12V Type BCI Group U1
Cabin typeOpen operator station
Engine
Engine modelBriggs & Stratton Model 21
Engine typeFour-stroke, air-cooled,
Cylinders1
Fuel typeGasoline
Displacement0.3 L, 339 cm2, (20.7 cu·in)
Bore and stroke87.0 mm X 57.0 mm (3.43 in X 2.24 in)
Horsepower9.4 PS (6.9 kW; 9.3 HP) at 3,350 rpm
StarterElectric
Oil typeSAE 10W-30, 10W-40
Oil capacity:1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Brakes
Transmission modelTuff Torq K46
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 4.8 (3 mph)
Tires
Front tiresLawn/turf: 15×6.00-6
Rear tiresLawn/turf: 18×8.5-8
PTO (Power take-off shaft)
Middle PTO typeIndependent with mechanical clutch
Middle PTO speed
