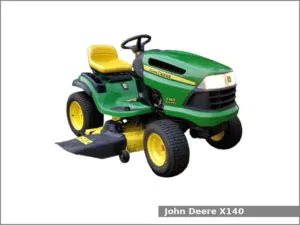

The John Deere X140 is a 2WD lawn tractor from the X100 series. This tractor was manufactured by John Deere in Greeneville, Tennessee, USA from 2007 to 2010. The John Deere X140 is equipped with a 0.7 L (40.0 cu·in) V-twin gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.
The John Deere X140 lawn tractor used the Model Briggs & Stratton 40 engine. It is a 0.7 L, 656 cm2, (40.0 cu·in) V-twin natural aspirated gasoline engine with 75.0 mm (2.95 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 18.1 PS (13.3 kW; 17.8 HP) of gross output power.
The John Deere X140 is equipped with manual steering, brakes, Open operator station, 15.1 liters (4 US gal.; 3.3 Imp. gal) fuel tank, and mid-mount the John Deere 48C – 48 in (1,210 mm) mower deck with 3-blades and a manual lift.
John Deere X140 Specifications
General Specifications | |
Model | John Deere X140 |
Length | 1,760 mm (69.3 in) |
Width | 1,520 mm (59.8 in) |
Height | 1,140 mm (44.9 in) |
Wheel base | – |
Weight | 238 kg (525 lbs) |
Fuel tank capacity | 15.1 liters (4 US gal.; 3.3 Imp. gal) |
Battery | 12V Type BCI Group U1 |
Cabin type | Open operator station |
Engine | |
Engine model | Model Briggs & Stratton 40 |
Engine type | Four-stroke, air-cooled, V-twin |
Cylinders | 2 |
Fuel type | Gasoline |
Displacement | 0.7 L, 656 cm2, (40.0 cu·in) |
Bore and stroke | 75.0 mm X 73.0 mm (2.95 in X 2.87 in) |
Horsepower | 18.1 PS (13.3 kW; 17.8 HP) |
Starter | Electric |
Oil type | SAE 10W-30, 10W-40 |
Oil capacity: | 1.9 L (2 US. qt, 1.7 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Manual |
Brakes | – |
Transmission model | Tuff Torq HD K46 |
Transmission type | Hydrostatic |
Gears | Infinite forward and reverse |
Speed | Forward: 8.9 kmh (5.5 mph) Reverse: 5.2 (3.2 mph) |
Tires | |
Front tires | Lawn/turf: 16×6.5-8 |
Rear tires | Lawn/turf: 22×9.5-12 |
PTO (Power take-off shaft) | |
Front PTO type | Independent with electric clutch |
Front PTO speed | – |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
