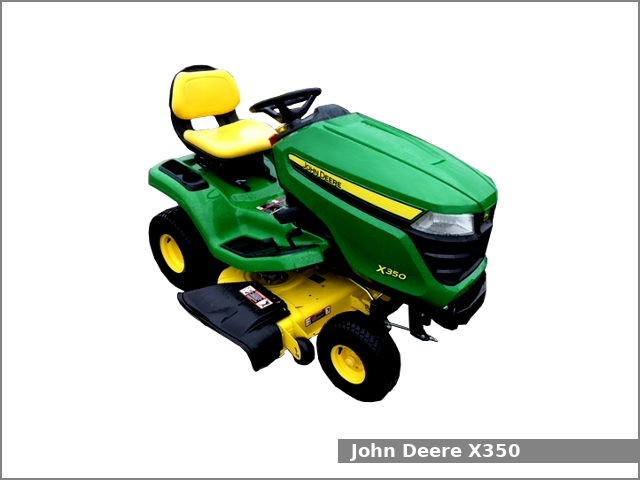

John Deere X350

John Deere X350The John Deere X350 is a lawn and garden tractor from the John Deere X-series. The John Deere X350 garden tractor has been produced from 2016.

The John Deere X350 is equipped with the Kawasaki FS600V engine. The FS600V (603 cc, 36.8 cu.in.) has 90 degrees V-twin design with vertical PTO shaft, overhead V-valves, cast iron cylinder liners, and spherical combustion chamber. The engine is equipped with the electronic spark ignition system, internally vented carburetor with fuel shut-off solenoid, rotating grass chopper screen, integrated clean out ports. The motor uses a high-performance lubrication system and dual-element air filter. It has a 73.0 mm (2.87 in) cylinder bore and 72.0 mm (2.83 in) piston stroke. The compression ratio rating is 8.1:1. This engine produced 18.8 PS (13.8 kW; 18.5 HP) at 3,600 rpm of maximum horsepower.

The John Deere X350 is equipped with the Kanzaki K46 variable speed hydrostatic transmission (infinite forward and reverse), internal wet disc brakes and power steering. This tractor used open operator station, middle independent PTO-shaft with electric clutch and 12.5 L (3.3 US gal.) fuel tank.

Following attachments are available for The John Deere X350 garden tractor:

  • Mid-mount John Deere 42 – 1,060 mm (42 in) mower deck with 2-blade and manual lift
  • Mid-mount John Deere 48 – 1,210 mm (48 in) mower deck with 3-blade and manual lift
  • Front-mount blade – 1,110 mm (44 in) with manual lift
  • Front-mount snow blower – 1,110 mm (44 in) dual-stage with manual lift

John Deere X350 Specifications

General Specifications
ModelJohn Deere X350
Length1,730 mm (72 in)
Width1,040 mm (41 in)
Height1,090 mm (43 in)
Wheel base1,250 mm (49.4 in)
Weight (without mower deck)210 kg (464 lbs)
Fuel tank capacity12.5 L (3.3 US gal.)
Battery12V
Engine Kawasaki FS600V
Engine modelFS600V
FuelGasoline
Displacement603 cc (36.8 cu.in.)
Bore x stroke73.0 x 72.0 mm (2.87 x 2.83 in.)
Power output18.8 PS (13.8 kW; 18.5 HP) at 3,600 rpm
Starter typeElectric starter
Oil type10W-30
Oil capacity1.7 L (1.8 qt)
Spark plugNGK: BPR4ES
Transmission and chassis
Chassis4×2 (2WD)
Transmission typeHydrostatic transmission (Kanzaki K46)
GearsInfinite forward and reverse
Ground speed Forward: up to 8.9 kmh (5.5 mph)
Reverse: up to 6.4 kmh (4.0 mph)
PTO-shaft
PTO typeMiddle, independent with electric clutch
PTO speed3,600
Wheels and tires
Front tiresLawn/turf: 15×6.00-6
Rear tiresLawn/turf: 20×10.00-8
