John Deere X570

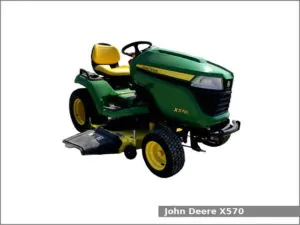

John Deere X570The John Deere X570 is a lawn and garden tractor from the John Deere X-series. The John Deere X570 garden tractor has been produced at the John Deere Horicon Works plant (Horicon, Wisconsin, USA) from 2016.

The John Deere X570 lawn tractor used the Kawasaki FS730V vertical engine. The Kawasaki FS730V is a 726 cc (44.3 cu-in) V-twin 90° air-cooled 4-stroke internal combustion small gasoline engine with a vertical shaft. The FS730V has 90 degrees V-twin design with vertical PTO shaft, overhead V-valves, cast iron cylinder liners, and spherical combustion chamber. Bore and stroke are 78.0 mm (3.07 in) and 76.0 mm (2.99 in), respectively. The compression ratio rating is 8.2:1. The Kawasaki FS730V produced 24 HP (17.9 kW) at 3,600 rpm.

The John Deere X570 tractor is equipped with the Kanzaki K72B belt-driven hydrostatic transmission (infinite forward and reverse), wet disk brakes, mechanical rear differential lock and manual steering. This tractor used open operator station, independent PTO-shaft with electric clutch and 16.7 L (4.4 US gal.).

Following attachments are available for The John Deere X570 garden tractor:

  • Mid-mount John Deere 48 (Accel Deep) – 1,220 mm (48 in) mower deck with 3-blade and manual lift
  • Mid-mount John Deere 54 (Accel Deep) – 1,370 mm (54 in) mower deck with 3-blade and manual lift

John Deere X570 Specifications

General Specifications
ModelJohn Deere X570
Length2,010 mm (79 in)
Width1,040 mm (41 in)
Height1,220 mm (48 in)
Wheel base1,300 mm (51.2 in)
Weight (without mower deck)274 kg (605 lbs)
Fuel tank capacity16.7 L (4.4 US gal)
Battery12V
Engine
Engine modelFS730V
FuelGasoline
Displacement726 cc (44.3 cu.in.)
Bore x stroke78.0 x 76.0 mm (3.07 x 2.99 in.)
Power output24 HP (17.9 kW) at 3,600 rpm
Starter typeElectric starter
Oil type10W-30
Oil capacity2.1 L (2.2 US.qt.)
Spark plugNGK: BPR4ES
Transmission and chassis
Chassis4×2 (2WD)
Transmission typeHydrostatic transmission (Kanzaki K72B)
GearsInfinite forward and reverse
Ground speed Forward: up to 11.0 kmh (7.0 mph)
Reverse: up to 6.4 kmh (4.0 mph)
Wheels and tires
Front tiresLawn/turf: 16×6.50-8
Rear tiresLawn/turf: 24×12.00-12
