Kubota GF1800

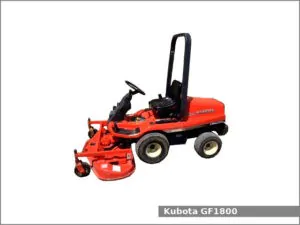

Kubota GF1800The Kubota GF1800 is a 2WD (GF1800E) or 4WD (GF1800) front-mount mower from the GF series. This tractor was manufactured by Kubota from 1994 to 2005. The Kubota GF1800 is equipped with a 0.7 L three-cylinder diesel engine and hydrostatic transmission with infinite forward and reverse gears.

The Kubota GF1800 riding mower used the Kubota D722 engine. It is a 0.7 L, 719 cm2, (43.9 cu·in) three-cylinder natural aspirated diesel engine with 67.0 mm (2.64 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke. This engine produced 16.9 PS (12.4 kW; 16.6 HP) of maximum output power.

The Kubota GF1800 is equipped with manual steering, internal expanding shoe brakes, open operator station with two-post ROPS and 20.0 liters (5.3 US gal.; 4.4 Imp. gal) fuel tank.

Following attachments are available for the Kubota GF1800 front-mount mower:

  • Front-mount Kubota 48 in (1,210 mm) mower deck
  • Front-mount Kubota 54 in (1,370 mm) mower deck with 3-blades
  • Front-mount Kubota 60 in (1,520 mm) mower deck with 3-blades

Kubota GF1800 Specifications

General Specifications
ModelKubota GF1800
Length 2WD: 2,120 mm (83.5 in)
4WD: 2,020 mm (79.4 in)
Width970 mm (38.2 in)
Height2,030 mm (79.9 in)
Wheel base850 mm (33.5 in)
Weight 2WD: 480 kg (1,060 lbs)
4WD: 490 kg (1,085 lbs)
Fuel tank capacity20.0 liters (5.3 US gal.; 4.4 Imp. gal)
Battery12V, 45Ah
Cabin typeOpen operator station with two-post ROPS
Engine
Engine modelKubota D722
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement0.7 L, 719 cm2, (43.9 cu·in)
Bore and stroke67.0 mm X 68.0 mm (2.64 in X 2.68 in)
Horsepower16.9 PS (12.4 kW; 16.6 HP)
StarterElectric
Oil capacity:3.0 L (3.2 US. qt, 2.6 Imp. qt.)
Coolant capacity:3.0 L (3.2 US. qt, 2.6 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeManual
Brakeslnternal expanding shoe
Transmission model
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 13.5 kmh (8.4 mph) Reverse: 6.5 (4 mph)
Tires
Front tiresLawn/turf: 20×10.8-8
Rear tiresLawn/turf: 16×6.50-8
