Kubota ZD18

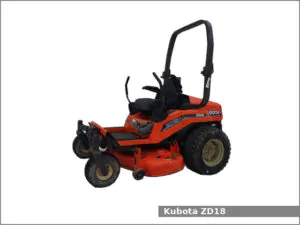

Kubota ZD18The Kubota ZD18 is a 2WD zero-turn mower from the ZD series. This tractor was manufactured by Kubota from 2001 to 2006. The Kubota ZD18 is equipped with a 0.7 L (43.9 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite forward and reverse gears.

The Kubota ZD18 zero-turn mower used the Kubota D722 engine. It is a 0.7 L, 719 cm2, (43.9 cu·in) three-cylinder natural aspirated diesel engine with 67.0 mm (2.64 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke. This engine produced 18.2 PS (13.4 kW; 18.0 HP) at 3,200 rpm of output power.

The Kubota ZD18 is equipped with differential power steering, two-post foldable ROPS, 30.0 liters (7.9 US gal.; 6.6 Imp. gal) fuel tank, and mid-mount the Kubota RCK54-18Z – 54 inches (1,370 mm) mower deck with 3-blades.

Kubota ZD18 Specifications

General Specifications
ModelKubota ZD18
Length2,030 mm (79.9 in)
Width1,340 mm (52.8 in)
Height1,910 mm (75.2 in)
Wheel base1,240 mm (48.8 in)
Weight610 kg (1,345 lbs)
Fuel tank capacity30.0 liters (7.9 US gal.; 6.6 Imp. gal)
Battery12V, CCA: 450A
Cabin typeTwo-post foldable ROPS
Engine
Engine modelKubota D722
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement0.7 L, 719 cm2, (43.9 cu·in)
Bore and stroke67.0 mm X 68.0 mm (2.64 in X 2.68 in)
Horsepower18.2 PS (13.4 kW; 18.0 HP) at 3,200 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD
Steering typeDifferential power
Brakes
Transmission model
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 14.6 kmh (9.1 mph) Reverse: 8.0 (5 mph)
Tires
Front tiresLawn/turf: 15×6.0-6
Rear tiresLawn/turf: 23×10.50-12
PTO (Power take-off shaft)
Middle PTO typeIndependent
Middle PTO speed
