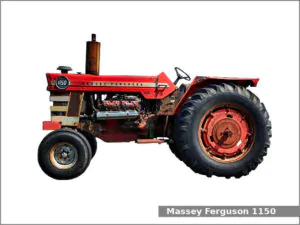

The Massey Ferguson 1150 is a 2WD row-crop tractor manufactured by Massey Ferguson from 1970 to 1972. The Massey Ferguson 1150 is equipped with a 8.3 L (503.8 cu·in) eight-cylinder diesel engine and a partial power shift transmission with 12 forward and 4 reverse gears.
The Massey Ferguson 1150 row-crop tractor used the Perkins AV8.510 engine. It is an 8.3 L, 8,256 cm2, (503.8 cu·in) V8 natural aspirated diesel engine with 108.0 mm (4.25 in) of the cylinder bore and 114.0 mm (4.49 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 148.1 PS (108.9 kW; 146.0 HP) at 2,200 rpm of output power and 730.9 N·m (74.5 kg·m, 538.7 ft·lb) at 1,450 rpm of torque.
The MF 1150 is equipped with power steering, differential hydraulic disc brakes, open operator station or cab (optional), and 189.3 liters (50 US gal.; 41.6 Imp. gal) fuel tank.
Massey Ferguson 1150 Specifications
| General Specifications | |
| Model | Massey Ferguson 1150 |
| Length | 4,330 mm (170.5 in) |
| Width | 2,380 mm (93.7 in) |
| Height (cab) | 2,870 mm (113 in) |
| Wheel base | 2,740 mm (107.9 in) |
| Weight (operating) | 6,165 kg (13,591 lbs) |
| Fuel tank capacity | 189.3 liters (50 US gal.; 41.6 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station or Cab (optional) |
| Engine | |
| Engine model | Perkins AV8.510 |
| Engine type | Four-stroke, liquid-cooled, V |
| Cylinders | 8 |
| Fuel type | Diesel |
| Displacement | 8.3 L, 8,256 cm2, (503.8 cu·in) |
| Bore and stroke | 108.0 mm X 114.0 mm (4.25 in X 4.49 in) |
| Compression ratio | 17.5:1 |
| Horsepower | 148.1 PS (108.9 kW; 146.0 HP) at 2,200 rpm |
| Torque | 730.9 N·m (74.5 kg·m, 538.7 ft·lb) at 1,450 rpm |
| Starter | Electric |
| Oil capacity: | 18.9 L (20 US. qt, 16.6 Imp. qt.) |
| Coolant capacity: | 45.4 L (48 US. qt, 39.9 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Power |
| Brakes | Differential hydraulic disc |
| Transmission model | Multi-Power |
| Transmission type | Partial power shift |
| Gears | 12 forward and 4 reverse |
| Speed | Forward: 27.0 kmh (16.8 mph) Reverse: 11.4 (7.1 mph) |
| Transmission oil capacity | 60.6 L (16 US. gal, 13.3 Imp. gal.) |
| Tires | |
| Front tires | Ag: 11.00-16 |
| Rear tires | Ag: 18.4-34 (row-crop), 18.4-38 (Western) |
| Three-Point Hitch | |
| Category | II |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540/1,000 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Hydraulic capacity | 60.6 L (16 US. gal, 13.3 Imp. gal.) |
| Valves | 2 |
| Pump flow | 20.0 gpm (75.7 lpm) |
