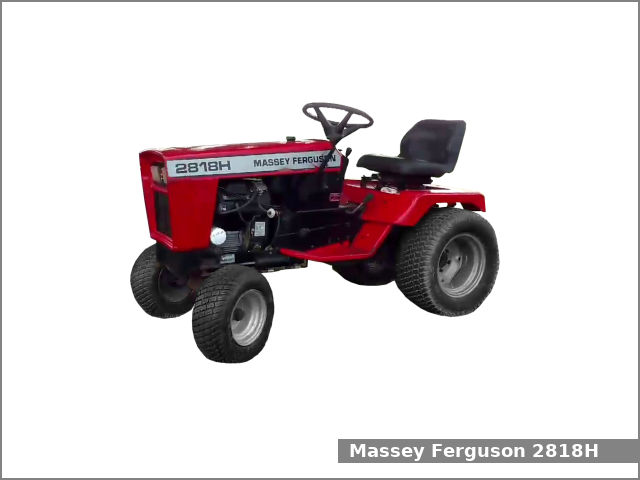

The Massey Ferguson 2818H is a 2WD garden tractor from the 2800 series. This tractor was manufactured by Simplicity in Port Washington, Wisconsin, USA for distributor Massey Ferguson from 1995 to 1999. The Massey Ferguson 2818H is equipped with a 0.6 L (38.1 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.
The MF 2818H garden tractor used the Kohler CH18 engine. It is a 0.6 L, 624 cm2, (38.1 cu·in) two-cylinder natural aspirated gasoline engine with 77.0 mm (3.03 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 18.2 PS (13.4 kW; 18 HP) at 3,600 rpm of output power.
The Massey Ferguson 2818H is equipped with manual or power (optional) steering, open operator station and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank.
Following attachments are available for the MF 2818H garden tractor:
- Mid-mount Massey Ferguson: 42 in (1,060 mm) mower deck with hydraulic lift
- Mid-mount Massey Ferguson: 48 in (1,210 mm) mower deck with hydraulic lift
- Mid-mount Massey Ferguson: 60 in (1,520 mm) mower deck with hydraulic lift
- Front-mount Massey Ferguson: 48 in (1,060 mm) blade
- Front-mount Massey Ferguson: 36 in (910 mm) snowblower
- Front-mount Massey Ferguson: 42 in (1,060 mm) snowblower
AGCO 918H Specifications
| General Specifications | |
| Model | Massey Ferguson 2818H |
| Length | 1,770 mm (69.7 in) |
| Width | 930 mm (36.6 in) |
| Height (steering wheel) | 1,000 mm (39.4 in) |
| Wheel base | 1,280 mm (50.4 in) |
| Weight | 312 kg (688 lbs) |
| Fuel tank capacity | 11.4 liters (3 US gal.; 2.5 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kohler CH18 |
| Engine type | Four-stroke, air-cooled, V-twin |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.6 L, 624 cm2, (38.1 cu·in) |
| Bore and stroke | 77.0 mm X 67.0 mm (3.03 in X 2.64 in) |
| Compression ratio | 8.5:1 |
| Horsepower | 18.2 PS (13.4 kW; 18 HP) at 3,600 rpm |
| Starter | Electric |
| Oil type | SAE 10W-30 |
| Oil capacity: | 1.9 L (2 US. qt, 1.7 Imp. qt.) |
| Spark plug | Champion RC12YC |
| Transmission and chassis | |
| Chassis | 2WD |
| Steering type | Manual or power (optional) |
| Brakes | Mechanical band brakes |
| Transmission model | – |
| Transmission type | Belt-driven hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 11.3 kmh (7.0 mph) Reverse: 6.4 kmh (4.0 mph) |
| Tires | |
| Front tires | Lawn/turf: 16×6.50-8 |
| Rear tires | Lawn/turf: 23×10.5-12 |
| Three-Point Hitch | |
| Category | Sleeve hitch (optional) |
| Control type | – |
| Lift capacity (at ends) | kg (0 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | Independent with manual clutch |
| Middle PTO speed | – |
