Massey Ferguson 50

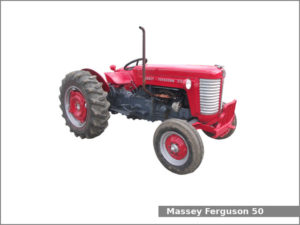

Massey Ferguson 50The Massey Ferguson 50 is a 2WD farm tractor manufactured by Massey Ferguson from 1957 to 1964.

The Massey Ferguson 50 is equipped with one of two engines: a 2.5 L (152.7 cu·in) three-cylinder diesel engine or a 2.2 L (134.0 cu·in) four-cylinder gasoline/LP-gas engine and one of two transmissions: a gear type transmission with 6 forward and 2 reverse gears and with dry disc clutch or a two-speed power shift transmission with 12 forward and 4 reverse gears.

The tractor could be equipped with the following engines:

  • Perkins. It is a 2.5 L, 2,502 cm2, (152.7 cu·in) three-cylinder natural aspirated diesel engine with 91.0 mm (3.58 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.4:1.
  • Continental Z-134. It is a 2.2 L, 2,196 cm2, (134.0 cu·in) four-cylinder natural aspirated gasoline/LP-gas engine. The cylinder bore is 84.0 mm (3.31 in) and the piston stroke is 98.0 mm (3.86 in). The compression ratio rating is 6.6:1 for gasoline version or 8.0:1 for LP-gas version.

The MF 50 is equipped with manual or power (option) steering, differential mechanical expanding shoe brakes, open operator station, and 45.4 liters (12 US gal.; 10 Imp. gal) fuel tank for diesel fuel or 64.3 liters (17 US gal, 14.1 Imp. gal) for gasoline.

Massey Ferguson 50 Specifications

General Specifications
ModelMassey Ferguson 50
Length3,040 mm (119.7 in)
Width1,620 mm (63.8 in)
Height1,440 mm (56.7 in)
Wheel base2,060 mm (81.1 in)
Weight (shipping) Gas: 1,655 kg (3,649 lbs)
Diesel: 1,500 kg (3,307 lbs)
Fuel tank capacity Diesel: 45.4 liters (12 US gal.; 10 Imp. gal)
Gasoline: 64.3 liters (17 US gal, 14.1 Imp. gal)
Battery12V, Gas: 40Ah, Diesel: 96Ah
Cabin typeOpen operator station
Engine
Engine modelPerkins
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement2.5 L, 2,502 cm2, (152.7 cu·in)
Bore and stroke91.0 mm X 127.0 mm (3.58 in X 5 in)
Compression ratio17.4:1
Horsepower
StarterElectric
Oil capacity:5.7 L (6 US. qt, 5 Imp. qt.)
Engine
Engine modelContinental Z-134
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeGasoline/LP-gas
Displacement2.2 L, 2,196 cm2, (134.0 cu·in)
Bore and stroke84.0 mm X 98.0 mm (3.31 in X 3.86 in)
Compression ratio Gasoline: 6.6:1
LP-gas: 8.0:1
Horsepower
StarterElectric
Oil capacity:4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity:9.5 L (10 US. qt, 8.4 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual or power (option)
BrakesDifferential mechanical expanding shoe
Transmission model
Transmission typeGear type with dry disc clutch
Gears6 forward and 2 reverse
Speed Forward: 23.4 kmh (14.5 mph) Reverse: 11.4 (7.1 mph)
Transmission modelMulti-Power
Transmission typeTwo-speed power shift
Gears12 forward and 4 reverse
Speed Forward: 30.8 kmh (19.1 mph) Reverse: (0 mph)
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 12.4-28
Three-Point Hitch
Category
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO typeLive
Rear PTO speed540 rpm
