New Holland LS45

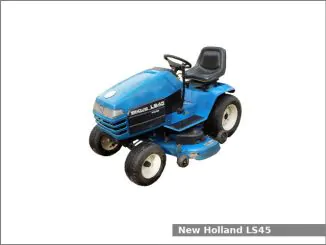

New Holland LS45The New Holland LS45 is a 2WD lawn and garden tractor from the LS series. This tractor was manufactured by Toro for distributor New Holland from 1996 to 2003. The New Holland LS45 is equipped with a 0.6 L (38.1 cu·in) two-cylinder gasoline engine and one of two transmissions: a belt-driven hydrostatic transmission with infinite forward and reverse gears or a gear type transmission with 6 forward and 1 reverse gears.

The New Holland LS45 garden tractor used the Kohler CV18 engine. It is a 0.6 L, 624 cm2, (38.1 cu·in) two-cylinder natural aspirated gasoline engine with 77.0 mm (3.03 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 16.2 PS (11.9 KW; 16.0 HP) or 18.2 PS (13.4 kW; 18.0 HP) at 3600 rpm of output power (depending on year and model).

The NH LS45 is equipped with manual steering, an open operator station, and 14.8 liters (3.9 US gal.; 3.3 Imp. gal) fuel tank.

Following attachments are available for the New Holland LS45 garden tractor:

  • Mid-mount New Holland 38 in (960 mm) mower deck with 2-blade
  • Mid-mount New Holland 42 in (1,060 mm) mower deck with 3-blade
  • Mid-mount New Holland 48 in (1,210 mm) mower deck with 3-blade
  • Mid-mount New Holland 52 in (1,320 mm) mower deck with 3-blade
  • Front-mount New Holland 48 in (1,210 mm) blade
  • Front-mount New Holland 42 in (1,060 mm) snow blower

New Holland LS45 Specifications

General Specifications
ModelNew Holland LS45
Length1,750 mm (68.9 in)
Width890 mm (35 in)
Height (steering wheel)1,070 mm (42.1 in)
Wheel base1,250 mm (49.2 in)
Ground clearance Gear: 200 mm (7.9 in)
Hydro: 180 mm (7.1 in)
Weight Gear: 231 kg (509 lbs)
Hydro: 236 kg (520 lbs)
Fuel tank capacity14.8 liters (3.9 US gal.; 3.3 Imp. gal)
Battery12V, CCA 280A
Cabin typeOpen operator station
Engine
Engine modelKohler CV18
Engine typeFour-stroke, air-cooled, inline
Cylinders2
Fuel typeGasoline
Displacement0.6 L, 624 cm2, (38.1 cu·in)
Bore and stroke77.0 mm X 67.0 mm (3.03 in X 2.64 in)
Horsepower 16.2 PS (11.9 KW; 16.0 HP) at 3,600 rpm
18.2 PS (13.4 kW; 18.0 HP) at 3,600 rpm
StarterElectric
Oil capacity:1.9 L (2 US. qt, 1.7 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Brakes
Transmission modelTuff Torq K61
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 kmh (2.3 mph)
Transmission oil capacity3.3 L (0.9 US. gal, 0.7 Imp. gal.)
Transmission modelPeerless
Transmission typeGear type
Gears6 forward and 1 reverse
Speed Forward: 8.5 kmh (5.3 mph) Reverse: 3.9 kmh (2.4 mph)
Transmission oil capacity3.3 L (0.9 US. gal, 0.7 Imp. gal.)
Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×10.50-12
