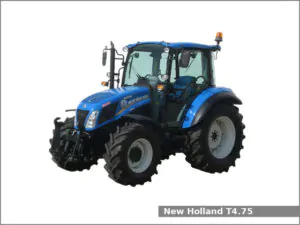

The New Holland T4.75 is a 2WD or 4WD utility tractor from the T4 PowerStar series. This tractor was manufactured by New Holland from 2012 to 2020. This second-generation was manufactured from 2015 to 2020. The New Holland T4.75 is equipped with a 3.4 L (207.0 cu·in) four-cylinder diesel engine and one of three transmissions: a mechanical shuttle transmission with 8 forward and 8 reverse gears, a power shuttle transmission with 8 forward and 8 reverse gears, or a mechanical shuttle transmission with 12 forward and 12 reverse gears.
The New Holland T4.75 utility tractor used the FPT F5D engine. It is a 3.4 L, 3,392 cm2, (207.0 cu·in) four-cylinder turbocharged diesel engine with 99.0 mm (3.9 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 75.1 PS (55.2 kW; 74.0 HP) at 2,300 rpm of output power.
The New Holland T4.75 is equipped with power steering, wet disc brakes, Two-post foldable ROPS or Cab (optional), and 90.1 liters (23.8 US gal.; 19.8 Imp. gal) fuel tank. This tractor could be equipped with the New Holland 655TL or 655TL MSL loader.
New Holland T4.75 Specifications
General Specifications | |
Model | New Holland T4.75 |
Length | 3,830 mm (150.8 in) |
Width | 1,920 mm (75.6 in) |
Height (cab) | 2,480 mm (97.6 in) |
Wheel base | 2WD: 2,170 mm (85.4 in) 4WD: 2,130 mm (83.9 in) |
Weight | 2WD ROPS: 2,280 kg (5,027 lbs) 4WD ROPS: 2,700 kg (5,952 lbs) 2WD Cab: 2,550 kg (5,620 lbs) 4WD Cab: 2,830 kg (6,240 lbs) |
Fuel tank capacity | 90.1 liters (23.8 US gal.; 19.8 Imp. gal) |
Battery | 12V |
Cabin type | Two-post foldable ROPS or Cab (optional) |
Engine | |
Engine model | FPT F5D |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 4 |
Fuel type | Diesel |
Displacement | 3.4 L, 3,392 cm2, (207.0 cu·in) |
Bore and stroke | 99.0 mm X 110.0 mm (3.9 in X 4.33 in) |
Horsepower | 75.1 PS (55.2 kW; 74.0 HP) at 2,300 rpm |
Starter | Electric |
Transmission and chassis | |
Chassis | 4×2 2WD or 4×4 MFWD 4WD |
Steering type | Power |
Brakes | Wet disc |
Final drive | Inboard planetary |
Transmission model | – |
Transmission type | Mechanical shuttle |
Gears | 8 forward and 8 reverse |
Transmission model | – |
Transmission type | Power shuttle |
Gears | 8 forward and 8 reverse |
Transmission model | – |
Transmission type | Mechanical shuttle |
Gears | 12 forward and 12 reverse |
Tires | |
Front tires | Ag: 7.50×16 (2WD), 11.2R24 (4WD) |
Rear tires | Ag: 16.9R30 |
Three-Point Hitch | |
Category | II |
Control type | Top-link draft sensing |
Lift capacity (at ends) | 2,190 kg (4,830 lbs) |
PTO (Power take-off shaft) | |
Rear PTO type | Independent |
Rear PTO speed | 540 or 540/540E rpm |
Hydraulic system | |
Hydraulic type | Open center |
Valves | 1 or 2 |
Pump flow | 12.5 gpm (47.3 lpm) |
