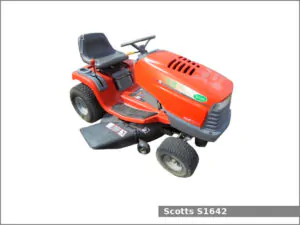

The Scotts S1642 is a 2WD lawn tractor manufactured by John Deere for distributor Scotts in Greeneville, Tennessee, USA from 1999 to 2001. The Scotts S1642 is equipped with a 0.4 L (26.0 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infininte forward and reverse gears.
The Scotts S1642 lawn tractor used the Kohler engine. It is a 0.4 L, 426 cm2, (26.0 cu·in) single-cylinder natural aspirated gasoline engine with 90.0 mm (3.54 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 16.2 PS (11.9 kW; 16.0 HP) at 3,600 rpm of output power.
The Scotts S1642 is equipped with manual steering, disc brakes, an open operator station, a 4.7 liters (1.2 US gal.; 1 Imp. gal) fuel tank, and a mid-mount 1,060 mm (21 in) mower deck.
Scotts S1642 Specifications
General Specifications | |
Model | Scotts S1642 |
Length | 1,520 mm (59.8 in) |
Width | 910 mm (35.8 in) |
Height | 980 mm (38.6 in) |
Wheel base | – |
Weight | 175 kg (386 lbs) |
Fuel tank capacity | 4.7 liters (1.2 US gal.; 1 Imp. gal) |
Battery | 12V, CCA 190A, BCI Group U1 |
Cabin type | Open operator station |
Engine | |
Engine model | Kohler |
Engine type | Four-stroke, air-cooled, inline |
Cylinders | 1 |
Fuel type | Gasoline |
Displacement | 0.4 L, 426 cm2, (26.0 cu·in) |
Bore and stroke | 90.0 mm X 67.0 mm (3.54 in X 2.64 in) |
Compression ratio | 8.5:1 |
Horsepower | 16.2 PS (11.9 kW; 16.0 HP) at 3,600 rpm |
Starter | Electric |
Oil capacity: | 1.9 L (2 US. qt, 1.7 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Manual |
Brakes | Disc |
Transmission model | Tuff Torq K51 |
Transmission type | Hydrostatic |
Gears | Infininte forward and reverse |
Speed | Forward: 8.5 kmh (5.3 mph) Reverse: 4.7 kmh (2.9 mph) |
Tires | |
Front tires | Lawn/turf: 15×6.50-6 |
Rear tires | Lawn/turf: 20×8.0-8 |
