Scotts S2048

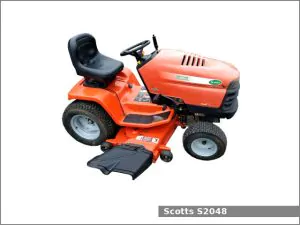

Scotts S2048The Scotts S2048 is a 2WD lawn tractor manufactured by John Deere for distributor Scotts in Horicon, Wisconsin, USA from 1999 to 2001. The Scotts S2048 is equipped with a 0.6 L (38.1 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Scotts S2048 lawn tractor used the Kohler CV20S engine. It is a 0.6 L, 624 cm2, (38.1 cu·in) two-cylinder natural aspirated gasoline engine with 77.0 mm (3.03 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 20.3 PS (14.9 kW; 20.0 HP) of output power.

The Scotts S2048 is equipped with manual steering, an open operator station, 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank, and a mid-mount 48 inches (1,210 mm) mower deck.

Scotts S2048 Specifications

General Specifications
ModelScotts S2048
Length1,820 mm (71.7 in)
Width
Height1,140 mm (44.9 in)
Wheel base
Weight258 kg (569 lbs)
Fuel tank capacity11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery12V
Cabin typeOpen operator station
Engine
Engine modelKohler CV20S
Engine typeFour-stroke, air-cooled, V
Cylinders2
Fuel typeGasoline
Displacement0.6 L, 624 cm2, (38.1 cu·in)
Bore and stroke77.0 mm X 67.0 mm (3.03 in X 2.64 in)
Horsepower20.3 PS (14.9 kW; 20.0 HP)
StarterElectric
Oil capacity:1.9 L (2 US. qt, 1.7 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Brakes
Transmission modelTuff Torq K62
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.8 kmh (5.5 mph) Reverse: 4.0 kmh (2.5 mph)
Tires
Front tires Lawn/turf: 16×6.5-8
Rear tires Lawn/turf: 23×9.5-12
PTO (Power take-off shaft)
Middle PTO typeIndependent with electric clutch
Middle PTO speed
