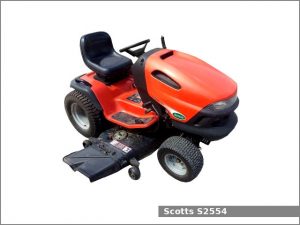

The Scotts S2554 is a 2WD lawn tractor from the series. This tractor was manufactured by John Deere for distributor Scotts in Horicon, Wisconsin, USA and Greeneville, Tennessee, USA from 1999 to 2002. The Scotts S2554 is equipped with a 0.7 L (44.0 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.
The Scotts S2554 lawn tractor used the Kohler CV25S engine. It is a 0.7 L, 721 cm2, (44.0 cu·in) two-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm of output power.
The Scotts S2554 is equipped with manual steering, open operator station and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank.
Scotts S2554 Specifications
General Specifications | |
Model | Scotts S2554 |
Length | 1,830 mm (72 in) |
Width | – |
Height | 1,150 mm (45.3 in) |
Wheel base | – |
Weight | 274 kg (604 lbs) |
Fuel tank capacity | 11.4 liters (3 US gal.; 2.5 Imp. gal) |
Battery | 12V |
Cabin type | Open operator station |
Engine | |
Engine model | Kohler CV25S |
Engine type | Four-stroke, air-cooled, V-twin |
Cylinders | 2 |
Fuel type | Gasoline |
Displacement | 0.7 L, 721 cm2, (44.0 cu·in) |
Bore and stroke | 83.0 mm X 67.0 mm (3.27 in X 2.64 in) |
Horsepower | 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm |
Starter | Electric |
Oil type | SAE 30, 10W, 5W-30 |
Oil capacity: | 1.9 L (2 US. qt, 1.7 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Manual |
Brakes | – |
Transmission model | Tuff Torq K-66 |
Transmission type | Belt-driven hydrostatic |
Gears | Infinite forward and reverse |
Speed | Forward: 8.8 kmh (5.5 mph) Reverse: 4.0 kmh (2.5 mph) |
Tires | |
Front tires | Lawn/turf: 16×7.5×8 |
Rear tires | Lawn/turf: 24x12x12 |
Three-Point Hitch | |
Category | Sleeve hitch (optional) |
Control type | – |
Lift capacity (at ends) | – |
