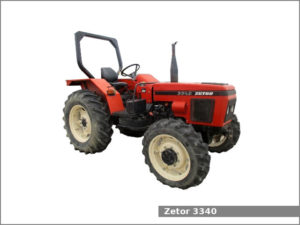

The Zetor 3340 is a 4WD utility tractor from the Range 1 series. This tractor was manufactured by Zetor in Brno, Czech Republic from 1993 to 1997. The Zetor 3340 is equipped with a 2.7 L (164.6 cu·in) three-cylinder diesel engine and one of two transmissions: a synchromesh transmission with 10 forward and 2 reverse gears or a mech shuttle transmission with 10 forward and 10 reverse gears.
The Zetor 3340 utility tractor used the Zetor Z5201 engine. It is a 2.7 L, 2,697 cm2, (164.6 cu·in) three-cylinder natural aspirated diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 46.6 PS (34.3 kW; 46 HP) at 2,200 rpm of output power.
The Zetor 3340 is equipped with power steering, hydraulic dry disc brakes, cab (standard), and 45.4 liters (12 US gal.; 10 Imp. gal) fuel tank. This tractor could be equipped with the Zetor 100 loader.
Zetor 3340 Specifications
General Specifications | |
Model | Zetor 3340 |
Length | 3,660 mm (144.1 in) |
Width | 1,840 mm (72.4 in) |
Height (cab) | 2,590 mm (102 in) |
Wheel base | 2,246 mm (88.4 in) |
Ground clearance | 380 mm (15.0 in) |
Weight (operating) | 3,210 kg (7,080 lbs) |
Fuel tank capacity | 45.4 liters (12 US gal.; 10 Imp. gal) |
Battery | 12V, CCA 950A |
Cabin type | Cab (standard) |
Engine | |
Engine model | Zetor Z5201 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 3 |
Fuel type | Diesel |
Displacement | 2.7 L, 2,697 cm2, (164.6 cu·in) |
Bore and stroke | 102.0 mm X 110.0 mm (4.02 in X 4.33 in) |
Compression ratio | 17.0:1 |
Horsepower | 46.6 PS (34.3 kW; 46.0 HP) at 2,200 rpm |
Starter | Electric |
Oil type | CD+, CE, CF-4 |
Oil capacity: | 9.0 L (9.5 US. qt, 7.9 Imp. qt.) |
Coolant capacity: | W/o heater: 9.5 L (10 US. qt, 8.4 Imp. qt.) With heater: 10.5 L (11 US. qt, 9.2 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×4 MFWD 4WD |
Steering type | Power |
Brakes | Hydraulic dry disc |
Transmission model | – |
Transmission type | Synchromesh |
Gears | 10 forward and 2 reverse |
Speed | Forward: 26.2 kmh (16.3 mph) Reverse: 5.6 kmh (3.5 mph) |
Transmission model | |
Transmission type | Mech shuttle |
Gears | 10 forward and 10 reverse |
Tires | |
Front tires | Ag: 9.5×24, 11.2×24 |
Rear tires | Ag: 14.9×28, 12.4×36, 16.9×28, 12.4×32 |
Three-Point Hitch | |
Category | II |
Control type | – |
Lift capacity (at ends) | 1,750 kg (3,860 lbs) |
PTO (Power take-off shaft) | |
Rear PTO type | Independent |
Rear PTO speed | 540/1000 rpm |
Hydraulic system | |
Hydraulic type | Open center |
Pressure | 2610 psi (180 bar) |
Valves | 1 |
Steering flow | 4.0 gpm (15.1 lpm) |
Total flow | 8.5 gpm (32.2 lpm) |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
