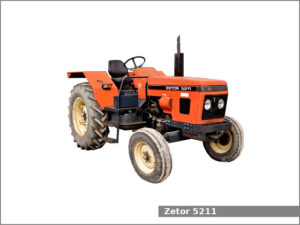

The Zetor 5211 is a 2WD utility tractor manufactured by Zetor in Brno, Czechoslovakia from 1985 to 1992. The Zetor 5211 is equipped with a 2.7 L (164.5 cu·in) three-cylinder diesel engine and a synchromesh transmission with 10 forward and 2 reverse gears.
The Zetor 5211 utility tractor used the Zetor 5201 engine. It is a 2.7 L, 2,696 cm2, (164.5 cu·in) three-cylinder natural aspirated diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 13.9 PS (10.2 kW; 13.7 HP) at 2,200 rpm of output power.
The Zetor 5211 is equipped with power assist steering, open operator station, and 55.0 liters (14.5 US gal.; 12.1 Imp. gal) fuel tank.
Zetor 5211 Specifications
General Specifications | |
Model | Zetor 5211 |
Length | 3,665 mm (144.3 in) |
Width | 1,800 mm (70.9 in) |
Height | 2,560 mm (100.8 in) |
Wheel base | 2,123 mm (83.6 in) |
Weight | 2,720 kg (5,997 lbs) |
Fuel tank capacity | 55.0 liters (14.5 US gal.; 12.1 Imp. gal) |
Battery | – |
Cabin type | Open operator station |
Engine | |
Engine model | Zetor 5201 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 3 |
Fuel type | Diesel |
Displacement | 2.7 L, 2,696 cm2, (164.5 cu·in) |
Bore and stroke | 102.0 mm X 110.0 mm (4.02 in X 4.33 in) |
Horsepower | 13.9 PS (10.2 kW; 13.7 HP) at 2,200 rpm |
Starter | Electric |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Power assist |
Brakes | – |
Transmission type | Synchromesh |
Gears | 10 forward and 2 reverse |
Speed | Forward: 24.0 kmh (14.9 mph) Reverse: 9.3 (5.8 mph) |
Tires | |
Front tires | Ag: 6.50-16, 7.50-16 |
Rear tires | Ag: 13-28, 11-36, 14-28, 11-32 |
Three-Point Hitch | |
Caterogy | II/I |
Control type | – |
Lift capacity (at ends) | 1,750 kg (3,860 lbs) |
PTO (Power take-off shaft) | |
Rear PTO type | Independent |
Rear PTO speed | 540/1,000 rpm |
Hydraulic system | |
Hydraulic type | Open center |
Pressure | 2320 psi (160 bar) |
Valves | 2 |
Pump flow | 8.0 gpm (30.3 lpm) |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
