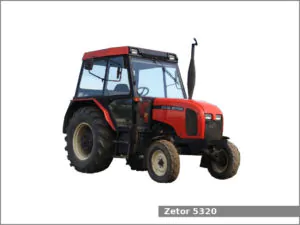

The Zetor 5320 is a 2WD utility tractor manufactured by Zetor from 1995 to 1997. The Zetor 5320 is equipped with a 3.6 L (219.4 cu·in) four-cylinder diesel engine and a partially synchronized transmission with 10 forward and 2 reverse gears.
The Zetor 5320 utility tractor used the Zetor 7201 engine. It is a 3.6 L, 3,595 cm2, (219.4 cu·in) four-cylinder natural aspirated diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 60.8 PS (44.7 kW; 60.0 HP) at 2,200 rpm of PTO output power.
The Zetor 5320 is equipped with power steering, hydraulic dry disc brakes, and a cab (standard).
Zetor 5320 Specifications
General Specifications | |
Model | Zetor 5320 |
Length | 3,790 mm (149.2 in) |
Width | 1,830 mm (72 in) |
Height (cab) | 2,640 mm (103.9 in) |
Wheel base | 2,250 mm (88.6 in) |
Weight (operating) | 3,060 kg (6,746 lbs) |
Fuel tank capacity | – |
Battery | 12V |
Cabin type | Cab |
Engine | |
Engine model | Zetor 7201 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 4 |
Fuel type | Diesel |
Displacement | 3.6 L, 3,595 cm2, (219.4 cu·in) |
Bore and stroke | 102.0 mm X 110.0 mm (4.02 in X 4.33 in) |
Horsepower | 60.8 PS (44.7 kW; 60.0 HP) at 2,200 rpm |
Starter | Electric |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Power |
Brakes | Hydraulic dry disc |
Transmission model | – |
Transmission type | Partially synchronized |
Gears | 10 forward and 2 reverse |
Speed | Forward: 28.1 kmh (17.5 mph) Reverse: 6.0 kmh (3.7 mph) |
Tires | |
Front tires | Ag: 7.50×16 |
Rear tires | Ag: 16.9×30 |
Three-Point Hitch | |
Category | II |
Control type | – |
Lift capacity (at ends) | 2,905 kg (6,405 lbs) |
PTO (Power take-off shaft) | |
Rear PTO type | – |
Rear PTO speed | 540/1000 rpm |
Hydraulic system | |
Hydraulic type | – |
Pressure | 2,610 psi (0.1 bar) |
Total flow | 10.6 gpm (40.1 lpm) |
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
